Skystar 330

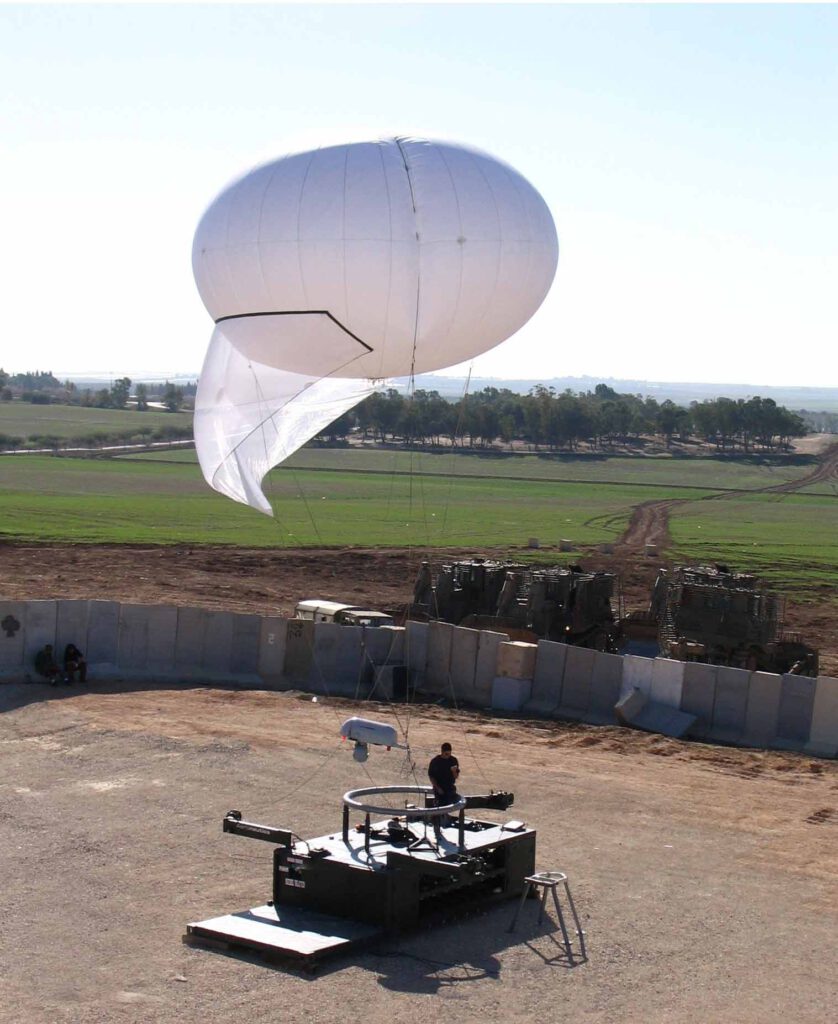

Skystar™ 330 is a tactical, transportable, easy to operate, cost effective Aerostat system designed to perform extended surveillance and reconnaissance missions in day and night, operating at an altitude of 1,500 ft. Carrying variety of payloads such as camera, communication, radar, intelligence as well as multi payloads.

Designed to operate on extended missions, the Skystar™ 330 is suitable for rapid deployment by a minimal crew after short training. Arriving on a location Skystar™ 330 needs no special preparation and is ready to begins surveillance in 30 minutes from halt. Self-sustained in the field on persistent surveillance missions Skystar™ 330 can operate continuously  under adverse weather conditions.
The Skystar™ 330 is operational with military and homeland security forces around the world, performing ISR, security and search and rescue missions, where the system proved outstanding efficiency, reliability and cost-effective.

Features

3-axis stabilize
Aerostat-unique (4 axis) Gyro-Stabilized Payload
gyro stabilized
Day/Night/Laser Designator sensors
Continuous zoom
Continuous zoom for day and night (IR) channels
360º
360° observation coverage
GIS Integration
GIS Integration
target coordinates
Map indication of payload footprint and target coordinates
C4I
•Interface with external C4I
packed and transported
Entire system packed and transported on trucked on container - size platform
Easy to operate
Easy to operate
Deployment_target coordinates copy 2
Deployment and launch in 30 minutes
all weather
Operation under adverse weather conditions
digital recorder_target coordinates copy
Integral digital recorder for all mission data
Low maintenance
Low operational and maintenance cost
military and homeland security
Ideal for military, HLS and crisis management operations

Applications

Border and Coastal Security

Perimeter security

Communication relay

Technical
specifications

Parameter Specification
Aerostat Diameter 25.5 ft (7.7 m’)
Aerostat Volume 100m3
Operating Altitude (AGL) Up to 1,500 ft. (457 m’)
Wind Limit 40 Kt
Payload Weight Up to 110 lbs. (50 kg)
Endurance Up to 72 hours
Operating temperature (○C) -35 to + 60°
